| Charge voltage | 36.5V |
| Nominal Voltage (V): | 3.2 |
| Nominal Capacity (mAh): | 100000 |
| Rated Charge-Discharge (Wh) | 300Wh |
| Standard Charge-Discharge | 150W |
| Max. Charge Power | 300W |
| Max. Discharge Power | 600W for 30s at 25ºC |
| Discharge Cut-off Voltage | 2.5V |
| Operating Temperature (°C): | Charging: 0ºC – 45ºV Discharging: -20ºC – 60ºC |
| Max. charge current | 1C |
| Standard Discharging Current | 0.SC |
| Impedance: | ≤0.6mΩ |
| Cell dimension | thick : 50. I + 0.5mm I 200kgf. SOC Delivery) fiw Wv Width : 160 + 0.8mm Length : 118.7 + 0.8mm & ñ IE Center distance:97.0 + 0.3mm |
| Length (mm): | 220 |
| Width (mm): | 130 |
| Height (mm): | 40 |
| Weight (g): | 2250 |
-20%

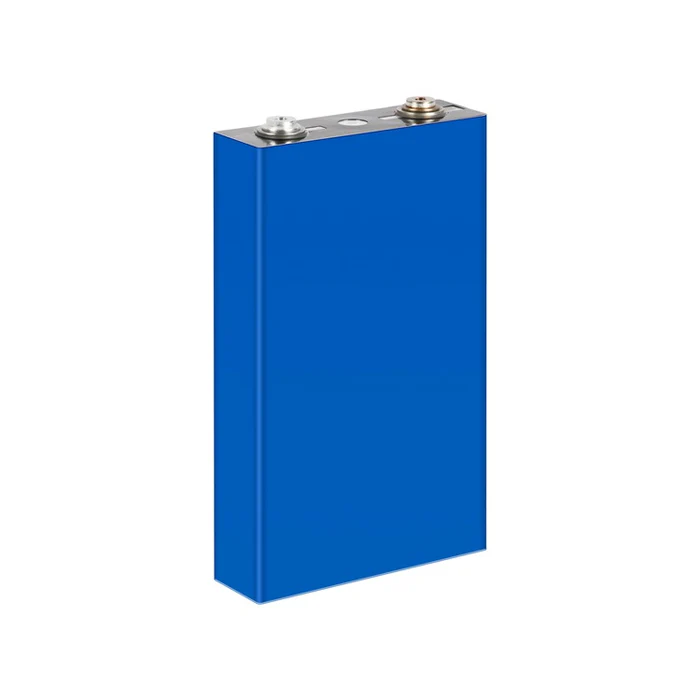

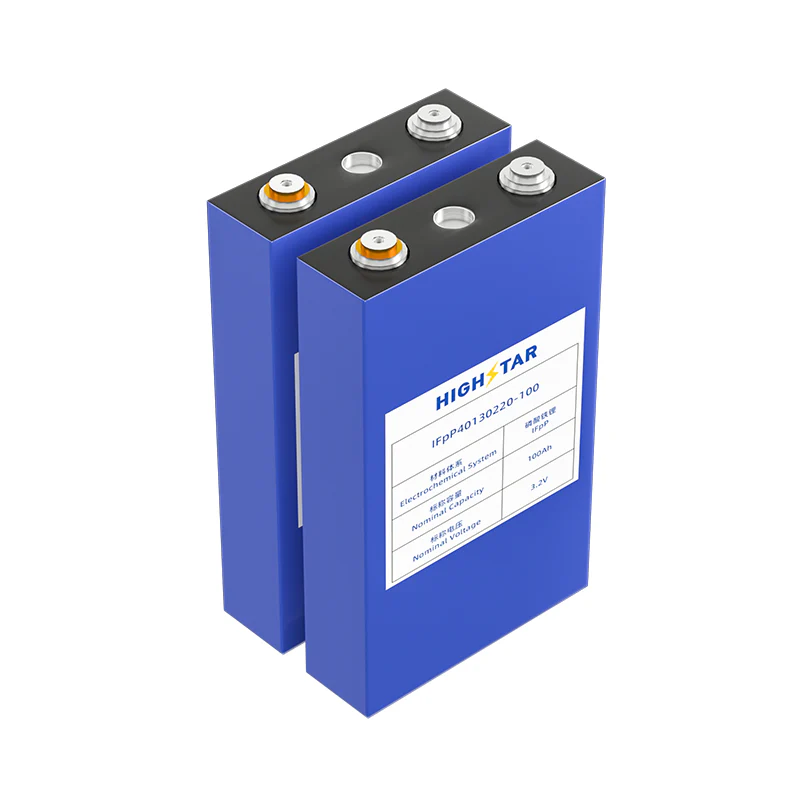

Highstar A Grade 3.2V 100Ah Prismatic Lithium Cell Battery
Original price was: ₹3,500.00.₹2,799.00Current price is: ₹2,799.00.
Minimum quantity – 16
The Highstar 3.2V 100Ah Prismatic LiFePO4 Cell is a high-performance rechargeable battery built for long-lasting power and safety. Designed with advanced lithium iron phosphate chemistry, it offers excellent stability, deep cycle capability, and a longer lifespan compared to conventional batteries. Its prismatic form factor ensures efficient energy density and compact installation, making it suitable for both residential and industrial applications.
With a nominal voltage of 3.2V and a capacity of 100Ah, this prismatic cell is ideal for building large battery packs, solar energy storage systems, electric vehicles, UPS systems, and off-grid solutions. Engineered for reliability, it delivers consistent discharge, supports high cycle life, and maintains safety with thermal and chemical stability.
Description
Related products
CELL 6 Ah HX SOLAR 32700
Minimum quantity - 100
- High Capacity & Voltage: 3.2V nominal voltage with a 6Ah capacity for long-lasting energy.
- Extended Cycle Life: Over 2,000 charge cycles, ensuring long-term reliability and cost-effectiveness.
- Fast Charging & Discharging: High charge/discharge currents for demanding applications.
- Stable Performance: Low internal resistance for efficient energy output.
- Enhanced Safety: Built-in protection against overcharging, over-discharging, and short circuits.
- Eco-Friendly: Free from toxic heavy metals like lead and cadmium.
Why Choose HX SOLAR GRADE Cylindrical LiFePO4 Cell 6Ah 3.2V 32700?
- Optimized for Solar Applications: Specifically designed for renewable energy storage, ensuring long-term efficiency and stability.
- Exceptional Safety: LiFePO4 chemistry guarantees stable thermal performance, no risk of explosion, and minimal self-discharge.
- Superior Cycle Life: Lasts significantly longer than conventional lithium-ion cells, reducing replacement costs.
- Eco-Friendly & Sustainable: Non-toxic, 100% recyclable, and aligned with global clean energy initiatives.
