| Brand | Luminous |
| Model Name | Optimus 2300+ |
| Technology | Sine Wave |
| Capacity | 2000 VA , Maximum load – 1600 W |
| Efficiency | 90% |
| Fast Charging | 135V input supply |
| Charging current Options | 8A-21A |
| Max Charging Current(in Amp) | 21 |
| Output Voltage | 180V to 260V |
| Input Voltage | 90V – 290V |
| Output/input Frequency | 50Hz |
| Batteries support | 2 Batteries (12V each) |
| Eco Mode Voltage Operation | 85 – 290 VAC |
| UPS Mode Voltage Operation | 180V – 265V AC |
| Change over time (Milli Sec) | <20 |
| Battery Recommended | 80 Ah- 250 Ah |
| Dimensions (L*B*H) | 30 X 32.6 X 28.4 cm |
| Warranty | 24 Months |
| Contents of Pack | 1 N Inverter, 1 N Warranty card |
| Net weight (kg.) | 21 Kg |
-33%
Previous product
Back to products
Luminous Eco Volt Neo 850 Sine Wave Inverter with Red Charge RC 15000ST 120Ah Battery
Original price was: ₹22,140.00.₹15,249.00Current price is: ₹15,249.00.
Next product
Luminous Zolt 1100 Sine Wave Inverter with ILTJ 18148 150Ah Battery
Original price was: ₹29,500.00.₹20,000.00Current price is: ₹20,000.00.

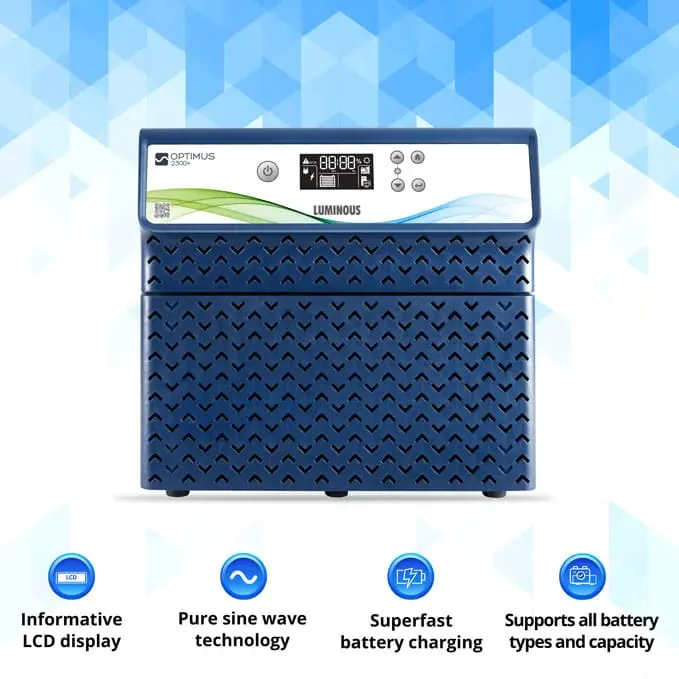

Luminous Optimus 2300+ Pure Sine Wave Inverter
Original price was: ₹20,000.00.₹13,499.00Current price is: ₹13,499.00.
Luminous Optimus 2300+ inverter is a 2000VA/24V pure Sine wave inverter. This inverter is suitable for all kinds of power cut situations due to its high charge acceptance and low maintenance. The inverter comes with a user-friendly informative LCD display and quick battery charging.
- Capacity- 2000 VA and a maximum load of 1600 W
- Technology- Pure Sine Wave Technology clean, consistent power for sensitive electronics.
- No. of battery supported – Two Batteries (12V each)
- LCD Display: State of the art LCD display shows real time Inverter battery performance statistics.
- Charging current: User can choose charging current between (8A-21A) for optimized performance.
- Optimized performance: User can choose output voltage between (200V-240V) to optimize between longer backup time and performance.
- Fast battery charging: Low voltage battery charging begins from 95V and fast charging from 135V input supply.
- Mode selector: Eco and UPS mode available
- Complete safety for your home with protection features and alarms on short circuit, overload, over-temperature and low battery
- Safety for your equipment as it supplies grid like power to the connected load
- Supports all Battery types (Flat, Tubular and SMF) and all battery capacities (80Ah-250Ah)
Description
Related products
Amaron 150AH Tall Tubular Battery AAM-CR-AR150TT54
- Warranty: 54 Months (36 Months Free + 18 Months Pro-rata Warranty)
- Advanced Tubular-Plate Technology
- Low Antimony Alloy
- Excellent Overcharge Tolerance
- Requires Low Maintenance
- 100% Genuine Product with Free Home Delivery
- High Plastic material with advanced premium design
- Battery Capacity: 150AH, 12V @ C20 Rating Tall Tubular Battery
- High Backup with fast Charging
- Support for All type of inverter (12V)
Luminous Eco Volt Neo 1050 Sine Wave Inverter with Red Charge RC 16000 135 Ah Battery
Luminous Eco Volt Neo 1050 Inverter
- Luminous Eco Volt Neo 1050 Inverter and RC 16000 Short tubular, Lead Acid Storage Battery
- Inverter System: – 12v olt, 756-watt, capacity – 900 VA
- Battery System: – 12 Volt; Capacity: 135 Ah, Short tubular Plate battery
- Load Capacity: – 1 Fridge (250 Litre), 1 led TV 40″, 3 fan, 2 tubelight, 1 LED bulb
- Sine wave inverter, Digital display, Intelligent 32-bit DSP Processor Battery USP
- Full Charging current at low voltage
- Protection: Overload, deep discharge, short-circuit, Reverse polarity & Input mains protection through MCB
- Warranty: 24 months for inverter and 36 months* for battery
- Tubular Technology battery Robust Tubular plates
- Value for money, longer life and less maintenance
Luminous 135 Ah Battery – RC16000
- Tubular Technology
- Capacity: Small < 135 Ah
- Warranty: 36 Months*
- Super charged performance
- Tubular Plate design, Suitable for frequent power cut areas
- High back-up performance
- Excellent overcharge resistance
- Minimum Maintenance
- Factory charged Ready to use
- Super charged performance
- Tubular Plate design, Suitable for frequent power cut areas
- High back-up performance
- Excellent overcharge resistance
- Minimum Maintenance
- Factory charged Ready to use
- Load Graph:-
| Home Appliances | Back Up in Hrs |
| 4 Tubelight + 4 Fan + 1 TV + 3 CFL | 3:00 to 3:30 Hours |
| 4 Tube lights + 4 Fans + 1 TV | 4:00 to 4:30 Hours |
| 2 Tubelight + 4 Fan + 1 PC + 3 CFL | 2:00 to 2:30 Hours |
| 5 Tubelight + 4 Fan + 1 PC + 5 CFL | 1:30 – 2.00 Hours |
Luminous Battery 150 Ah SHAKTI CHARGE – SC 18060
Product Description & Features
Latest innovation with thick tubular plates - best suited for areas with a frequent and long power cut. These batteries require low maintenance and are corrosion resistant, leading to longer battery life.
- Power that lasts long & goes on and on
- Next generation battery with better charge acceptance and long Back up
- Tubular plate technology - suitable for deep discharge application
- Ultra-Low Maintenance
- Special space friendly low height container
Livguard Invertuff IT 1636STJ 160AH Tubular Battery
- Enjoy uninterrupted living with Invertuff Battery
- Futuristic designs to fit your interiors
- Battery Capacity: 160AH, 12V @ C20 Rating Jumbo Tubular Battery
- Warranty: 36 Months (18 Months Free of Cost + 18 Months Pro Rata)
- Long-lasting Battery
- All type of inverter
- best suited for areas with frequent and long power cuts
- Easy maintenance with any extra cost
- 100% Genuine Product
- Free Home Delivery
- High Quality material with advanced premium design
- High Power Backup which full fill dream
- Best with Livguard inverter
| Electrical Load | Recommended Inverter Rating | Back-Up Time Approx |
| 2 Fan + 1 TV + 3 LED |
600 to 1100 VA |
4:00 to 5:00 Hours |
| 4 Fan + 1 TC + 7 LED |
600 to 1100 VA |
3:00 to 3:30 Hours |
|
6 Fan + 1 TV + 8 LED |
600 to 1100 VA |
2:00 to 2:30 Hours |
Amaron 200AH Tall Tubular Battery AAM-CR-AR200TT54
- Warranty: 54 Months (36 Months Free + 18 Months Pro-rata Warranty)
- Battery Capacity: 200AH, 12V @ C20 Rating Tall Tubular Battery
- Advanced Tubular-Plate Technology
- Low Maintenance Battery & Low Antimony Alloy
- Excellent Overcharge Tolerance
- Requires Low Maintenance
- Long Life with Improved Safety
- 100% Genuine Product with Free Home Delivery
- High Plastic material with advanced premium design
- High Backup with fast Charging
- Support for All type of inverter (12V)
- Fast Service support by Amaron
- fully factory charged
- Robusta™ Spine grid is made up of high pressure die casting using robust antimony alloy for deep cycling application.
- Satiated wet paste™ used in the battery is a highly dense & homogenous active material that delivers consistent power & long life
- Cell Bridge Construction technology creates a bridge in the container for active material settling to avoid internal shorts due to shedding.
- AMARON Current EV has ACS Activation Process - which is an advanced formation process that uses acid circulation technique for uniform conversion and narrow voltage variation in a string of batteries.
- CIB™ - Class of the Best venting technique is designed with a drain-back system to minimise acid spewing and to meet safety standards against ICAT requirements.
Livguard 200AH Invertuff IT 2048TT Tall Tubular Battery
- High Charge capacity for High Backup
- Enjoy uninterrupted living with Invertuff Battery
- Futuristic designs to fit your interiors
- Battery Capacity: 200AH, 12V @ C20 Rating Jumbo Tubular Battery
- Warranty: 48 Months (24 Months Free + 24 Months Pro-rata Warranty)
- Long-lasting Battery for All type of inverter
- best suited for areas with frequent and long power cuts
- Easy maintenance without extra cost
- 100% Genuine Product with Free Home Delivery
- High Quality material with advanced premium design
- High Power Backup which full fill need
| Electrical Load | Recommended Inverter Rating | Back-Up Time Approx |
| 2 Fan + 1 TV + 3 LED |
600 to 1100 VA |
4:30 to 5:30 Hours |
| 4 Fan + 1 TC + 7 LED |
600 to 1100 VA |
3:30 to 4:00 Hours |
| 6 Fan + 1 TV + 8 LED |
600 to 1100 VA |
3:00 to 3:30 Hours |
Livguard 220Ah Invertuff IT 2266TT Tall Tubular Battery
- Free Home Delivery
- Easy maintenance
- High Longer Life
- Factory charged
- Battery Capacity: 220 Ah
- Warranty: 66 Months(42 Months Free Of Cost + 24 Months Pro Rata)
- Battery Type: 220AH, 12V @ C20 Rating Tall Tubular Battery
- Battery: All type of inverter
- Brand New & 100% Genuine
| Electrical Load | Recommended Inverter Rating | Back-Up Time Approx |
| 4 Fan + 1 PC + 3 LED | 600 to 1100 VA | 4:30 to 5:00 Hours |
| 7 Fan + 1 PC + 7 LED | 600 to 1100 VA | 2:45 to 3:00 Hours |
| 2 Fan + 1 TV + 4 LED | 600 to 1100 VA | 8:30 to 10:00 Hours |
